Centrifugal Sand Separator – Model PCS

Product Brochure
CAD Drawings
Instruction Manual

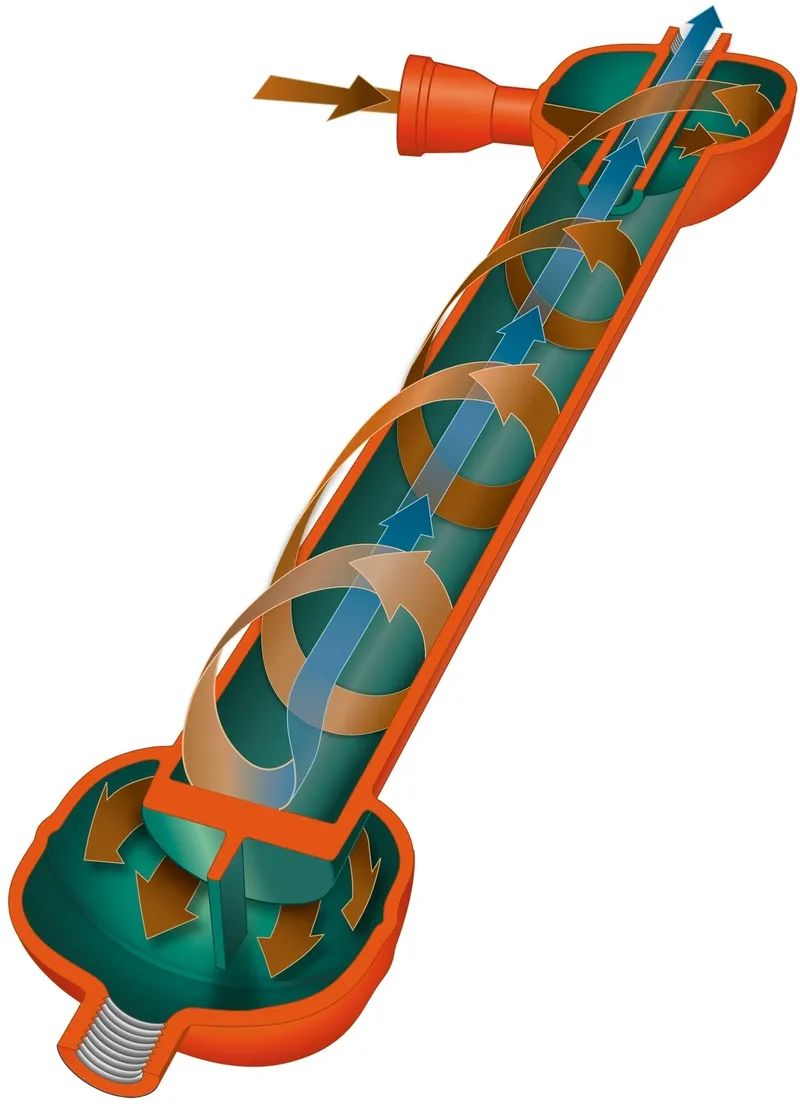

Yardney Centrifugal Sand Separators are ideal for removal of suspended solids and inorganic materials with a specific gravity of 2 or greater. This highly effective system will provide consistent, simple removal of inorganic material down to 75 microns. Easily installed, these carbon steel units are rated to 150 psi with threaded or flanged inlet and outlet connections. Smaller models are designed for vertical installation, while larger models are angled and floor or ground mounted. Larger flow separators and custom designed systems are available.

Sizing must be within the specified flow range for proper centrifugal action.

Applications:

  • Removal of sand, rock, grit and other inorganic contaminants to protect drip and micro-irrigation systems with fine mesh filtration down to 200 mesh or 75 microns
  • 150 psi standard operating pressure (high pressure systems available)
  • Flow ranges from 4 gpm
  • Removal of solids with a specific gravity of 2 or greater
  • Serves as an excellent pre-filter to allow for improved sand media or screen filter performance by removing the gross solids out of the water source

Advantages:

  • Sand removal efficiency of 98% of solids down to 200 mesh or 75 microns
  • Multiple units in series provide higher efficiencies of filtration
  • Units are available in ASME code or non-code construction
  • Available with a manual or automatic solids purge valve system
  • Special alloys and coatings are available for prolonged life in required applications
  • Made in USA

Standard Assembly Includes:

  • Welded carbon steel
  • Vertical models include female threaded inlet and outlet connections and a threaded purge port for purging of contaminants or hookup of automatic flush valve
  • Angled models include flanged inlet and outlet connections and a threaded purge port for purging of contaminants or hookup of automatic flush valve

Available Options:

  • ASME code
  • High pressure
  • Special metal alloys and coatings for extended product life
  • Ability to disassemble unit for inspection through flanged manways
  • Automatic purge valve for flushing of filter
  • Wall mount kit on smaller units

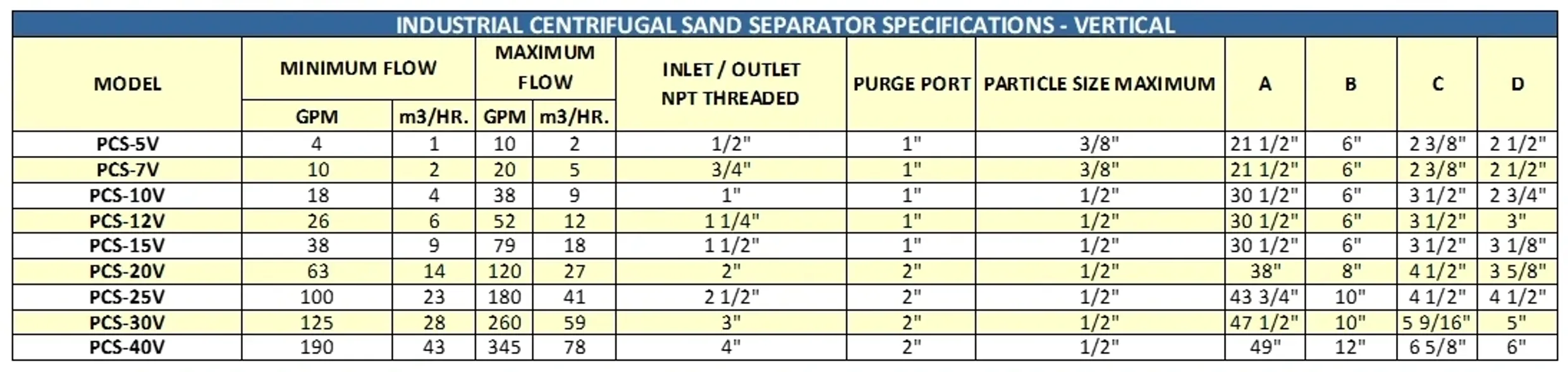

Vertical Centrifugal Sand Separator

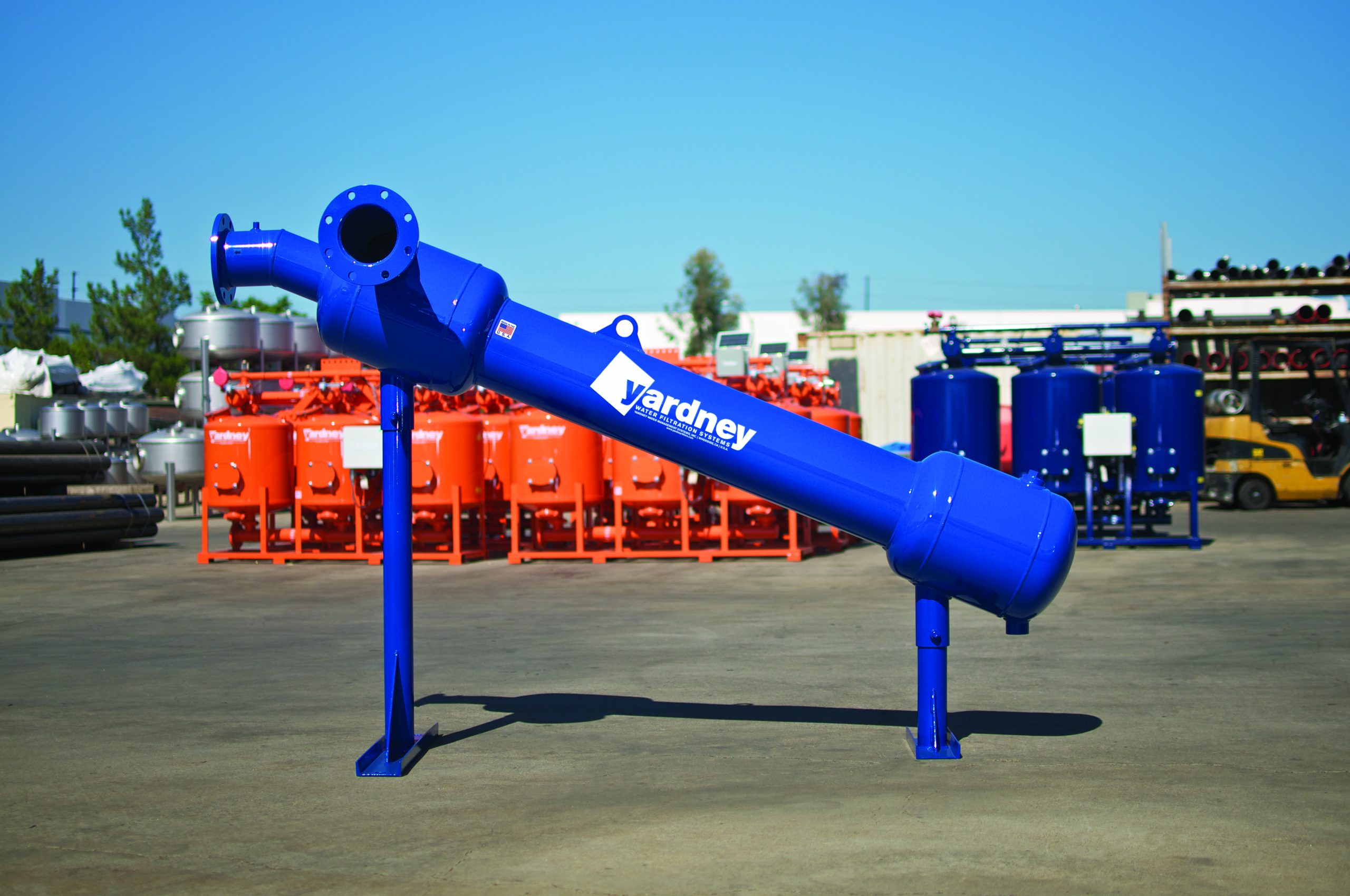

Angled Centrifugal Sand Separator
