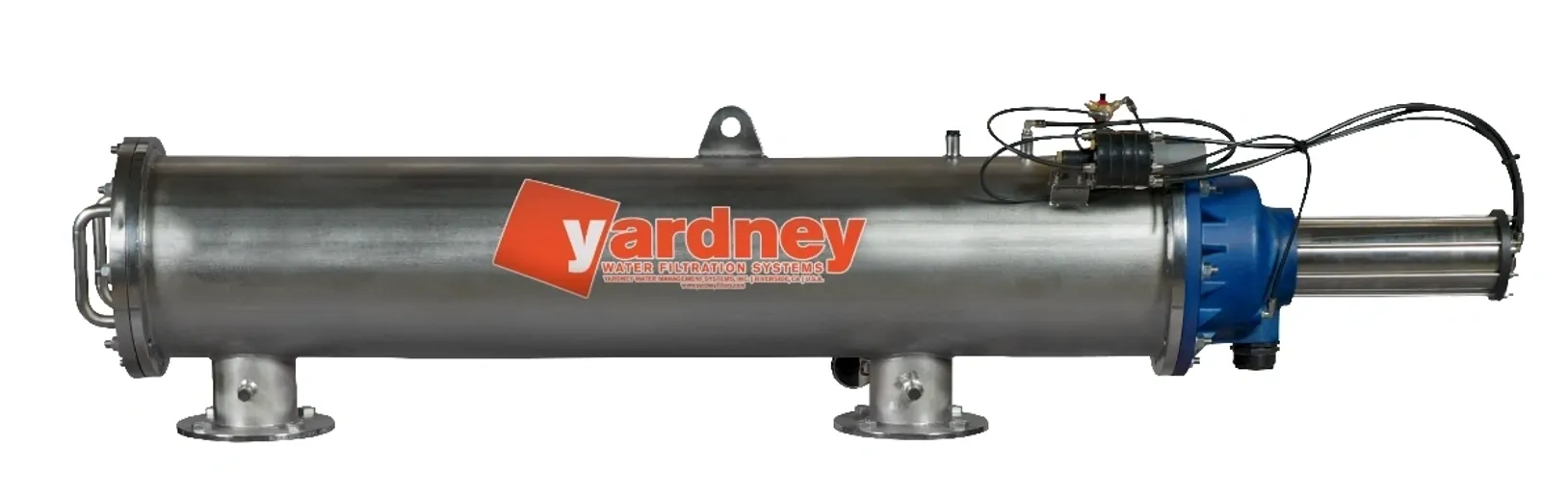

Yardney-Filtaworx Screen Filter
Yardney Filtaworx Automatic Self-Cleaning Screen Filters provide excellent protection for all types of irrigation systems, including drip, micro-spray, sprinklers and golf course systems. Filtaworx screen filters are one of the most technically innovative self-cleaning filters available, combining proven high performance, reliability and economy in a compact robust design.
Applications:
- Removal of algae, slime or other organic contaminant as well as sand, grit and other inorganic contaminants with fine mesh filtration down to 250 mesh or 50 microns
- 150 psi standard operating pressure (high-pressure systems available)
- Flow ranges from 110 gpm
- Irrigation and turf applications, including drip, micro-spray and sprinklers
Advantages:
- Heavy-duty stainless steel filter body provides corrosion resistance in most environments
- Durable low-maintenance automatic self-cleaning mechanism
- Wide range of fine screen sizes from 50–800 microns (250-20 mesh)
- Hydraulically or electrically controlled internal cleaning mechanism
- Automatic operation of the self-cleaning backflush cycle is achieved when a pre-set pressure drop (5–7 psi) across the filter is reached
- Sectional screens allow easy replacement of a section of screen versus entire cartridge if damage occurs to the screen
- Minimal moving parts, simple design and robust construction
- Compact and simple installation can be mounted in any position or orientation, with minimal space requirements
- Sacrificial anode (most models)
Standard Assembly Includes:
- 304 stainless steel body with flanged inlet and outlet

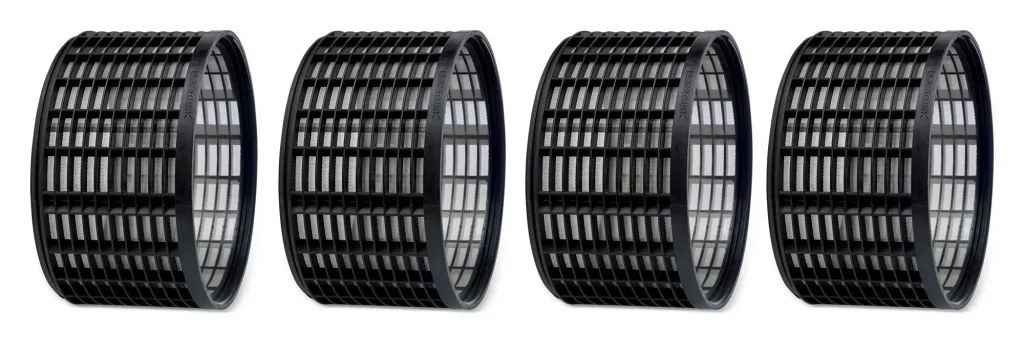

- Glass reinforced nylon screen element accompanied with 316 stainless steel mesh (shown below)
- NBR and EPDM seals
- Hydraulic controller
- Sacrificial anode (most models)
Available Options:
- 316 stainless steel housing available on request
- High pressure
- Electric controller
- Pressure sustaining valve (highly recommended)

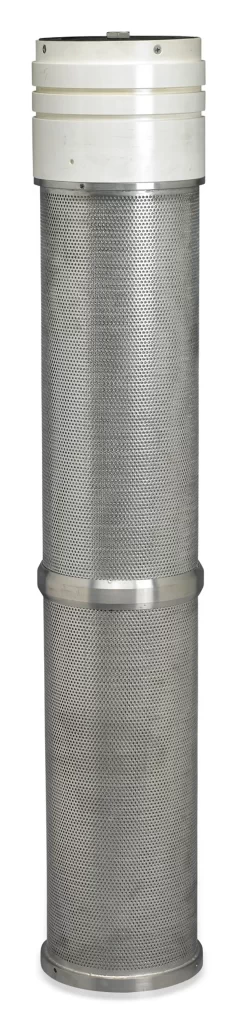

- Four layered sintered screen (shown on right)
